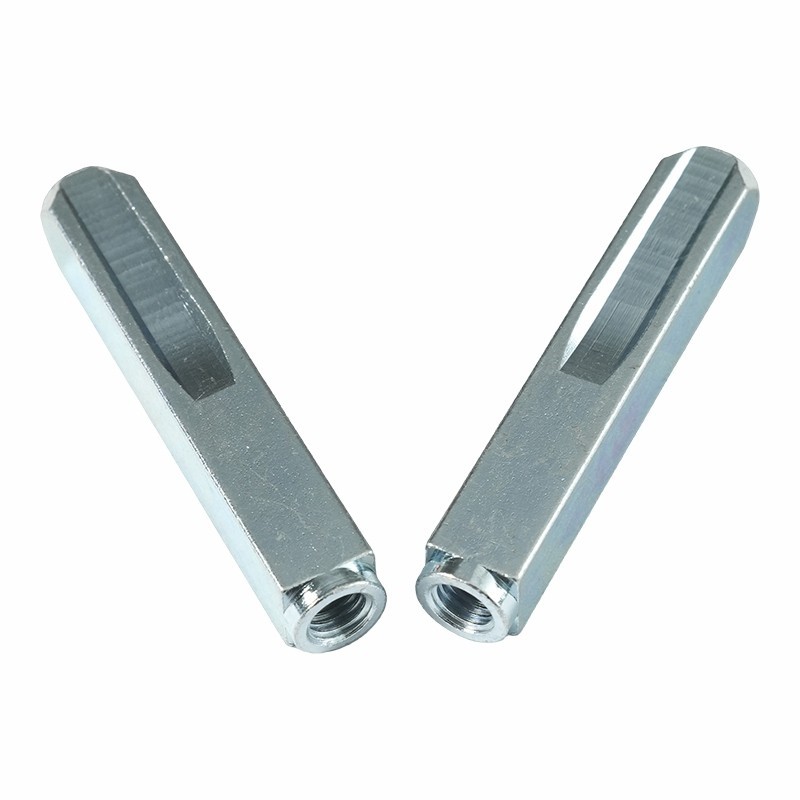

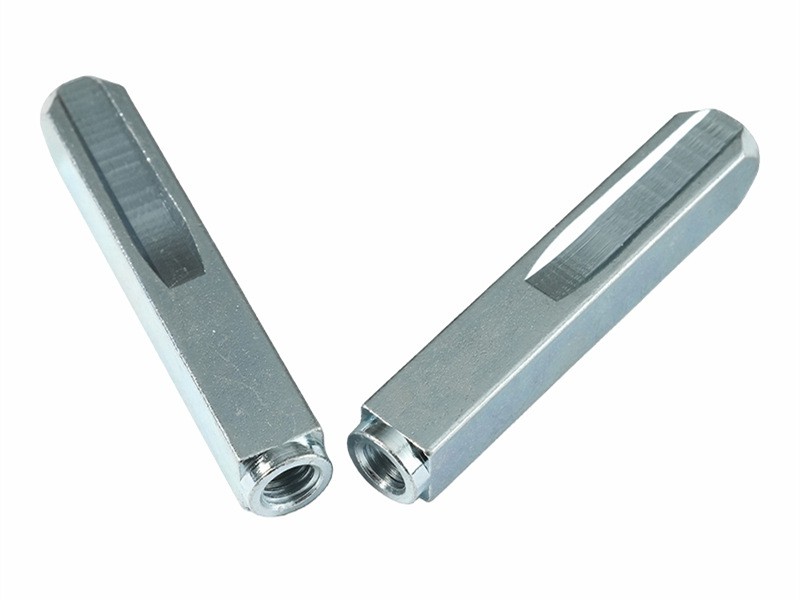

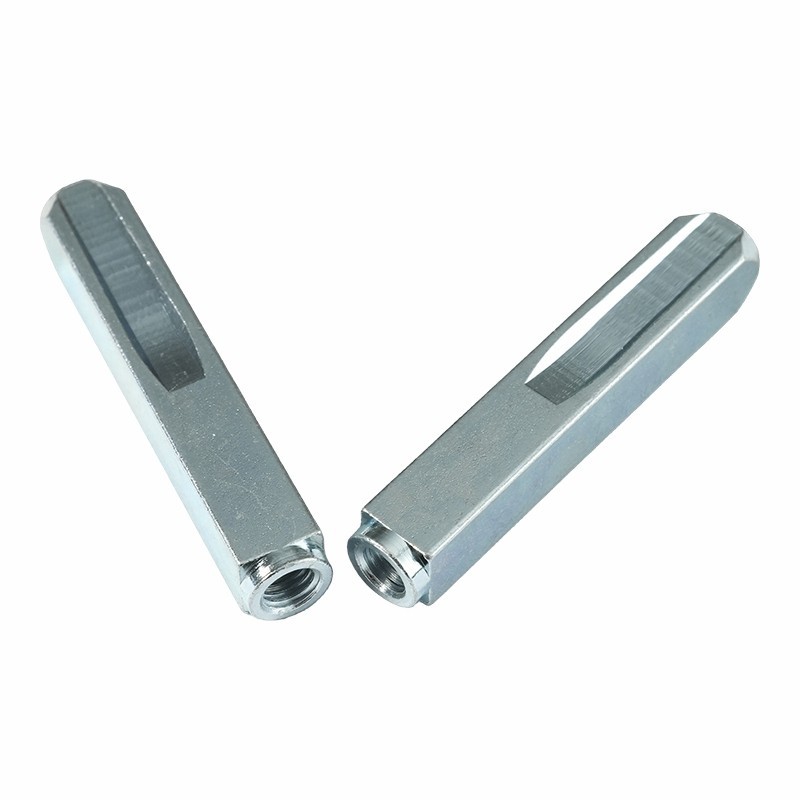

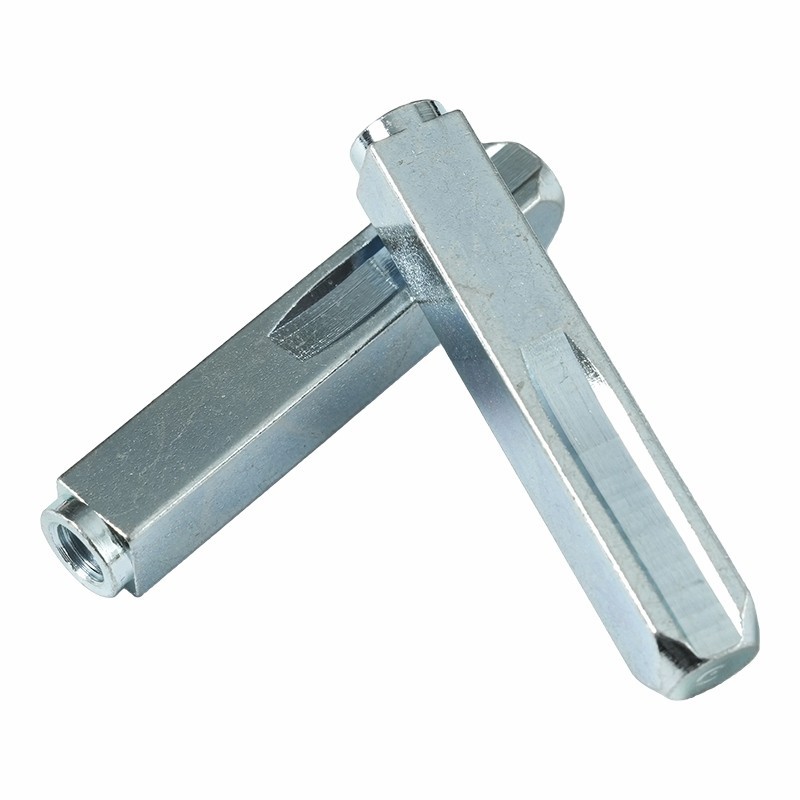

Carbon Steel Square Spindle Bar

For more than a decade, we have been a trusted manufacturer of precision carbon steel CNC turned components, specializing in custom square lock cores built to demanding specifications. This lock accessory has been in continuous production at our factory for over 10 years, and its long service life is a clear reflection of the durability and quality consistency we deliver - something increasingly rare in today's market. We are proud to continue supplying this proven and reliable solution to our customers.

This component is also ideal for applications requiring a carbon steel square spindle bar, where dimensional accuracy, torsional strength, and long-term durability are essential.

Engineered to Meet Demanding Strength Requirements

We understand that standard solutions often cannot meet specialized requirements. That is why this lock core is manufactured fully according to the customer's exact specifications.

• Across-flats dimension: 9.09 mm

• Material: 1215 eco-friendly free-cutting steel

• Thread design: reinforced internal thread with a larger pitch and stronger profile

Compared with standard threads, this design provides stronger engagement, improved torque resistance, and better protection against thread stripping. These features make it especially suitable for heavy-duty lock applications and other products requiring a durable carbon steel square spindle bar.

Specialized Machining with Custom Tooling

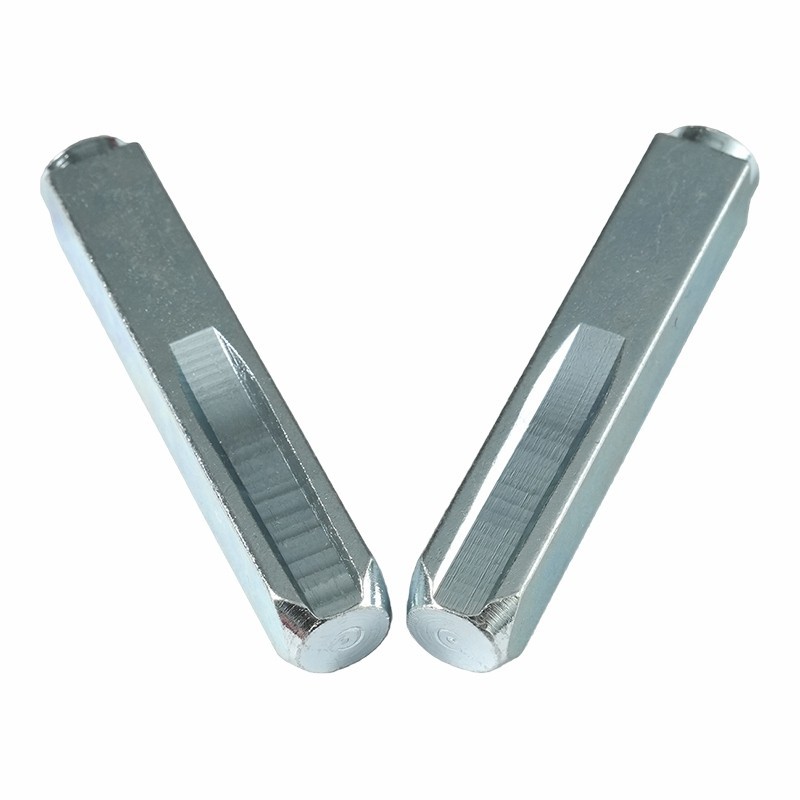

The design includes special R-shaped grooves machined at both ends. To achieve this shape with complete consistency and accuracy, we developed and manufactured our own custom fixtures.

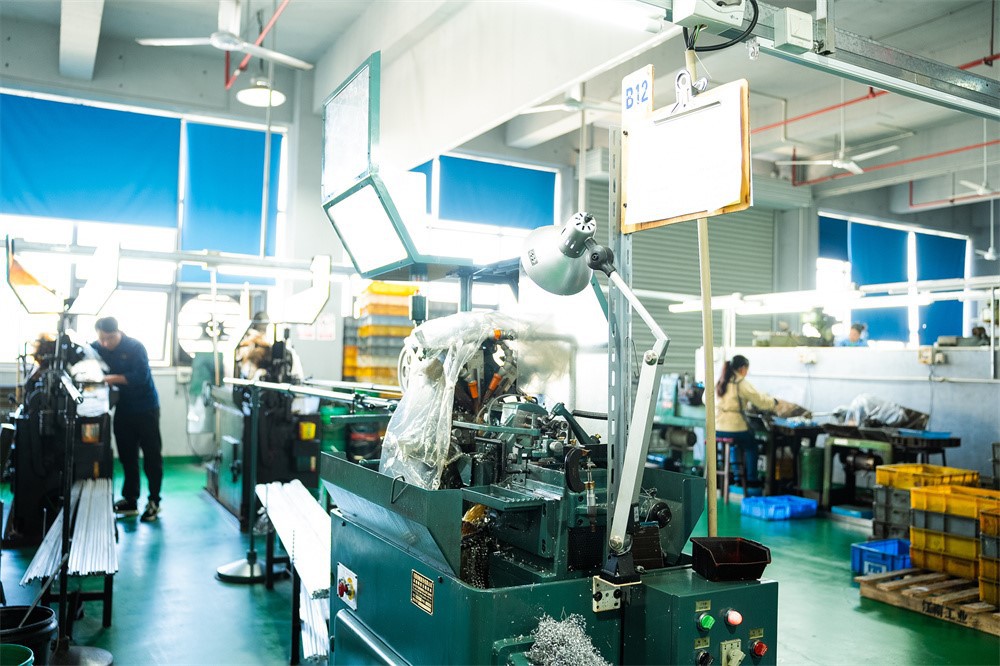

Our production process combines:

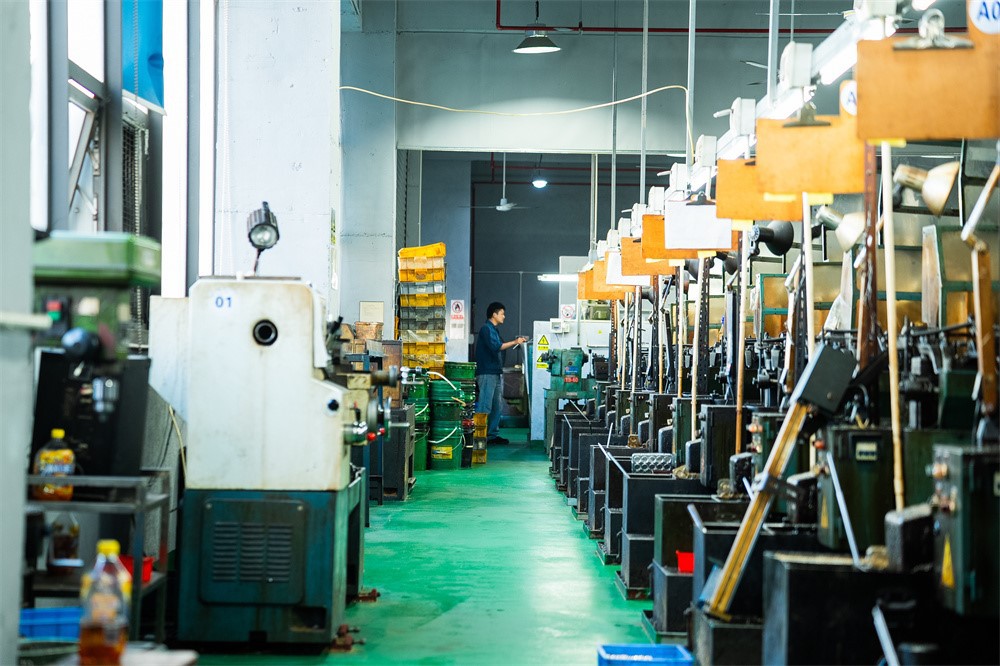

• Automatic lathe machining for efficient turning operations

• Milling for the precise machining of intricate R-shaped grooves

This combination ensures stable dimensions and consistent part quality across every batch.

Superior Surface Protection



To ensure long-term reliability even in challenging environments, the surface is finished with environmentally friendly color zinc plating.

This treatment provides:

• A clean and uniform appearance

• Excellent corrosion resistance

• Successful performance in a 48-hour neutral salt spray test

This helps the part maintain its durability and function over an extended service life. As a practical reference, each hour of neutral salt spray testing is roughly equivalent to about one year of natural environmental corrosion exposure.

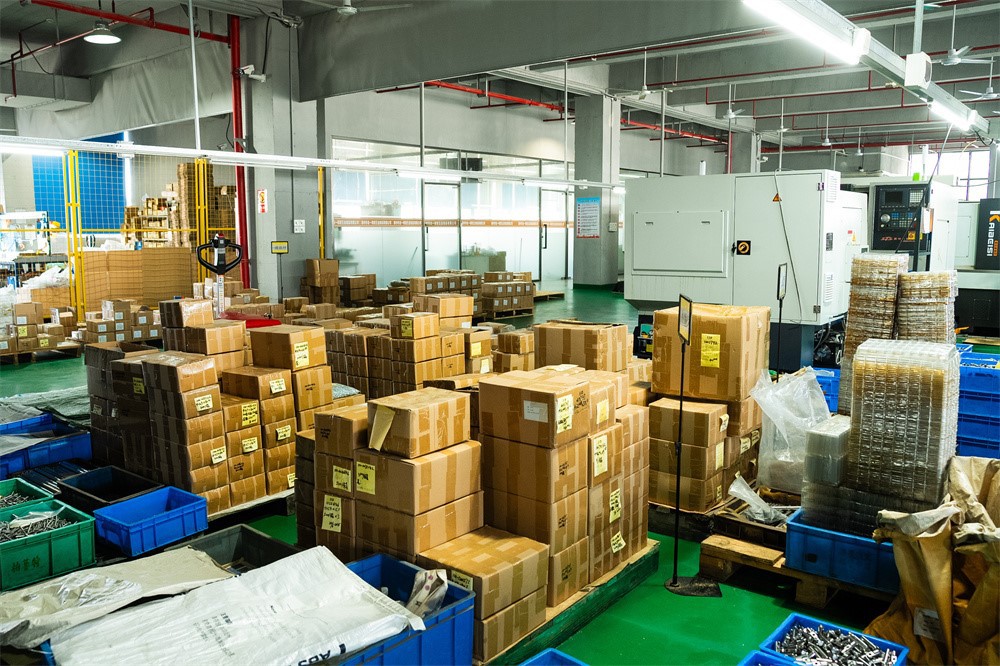

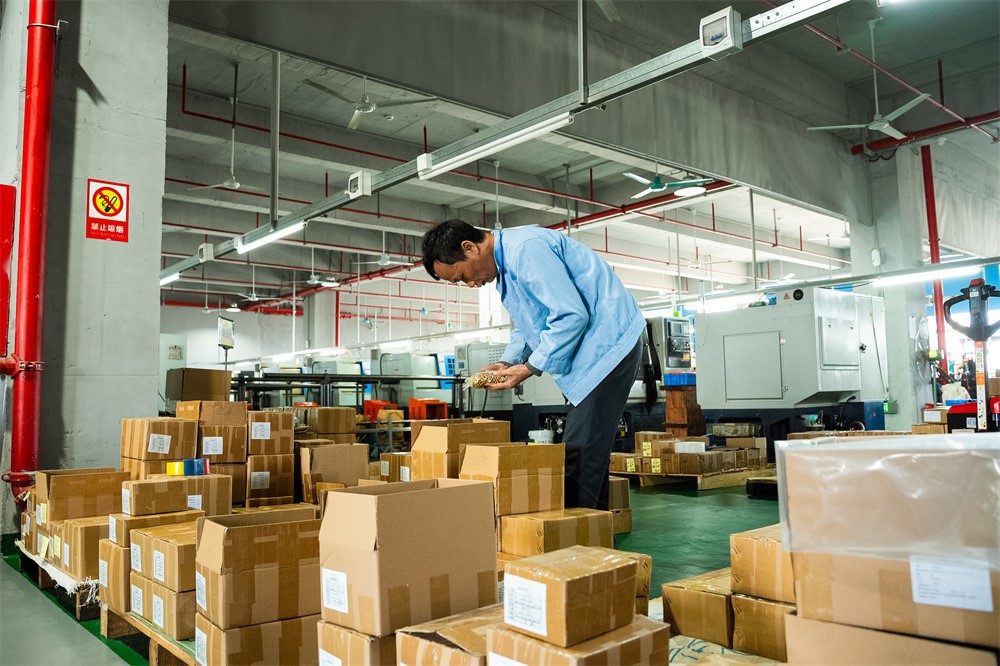

Each CNC turned part is individually packed in a PE bag, then securely placed into standard export cartons.

• Carton weight: controlled within 15 kg

• Ensures safe handling and convenient transportation
