Custom Precision CNC Turned Shafts Manufacturer
Custom CNC turned shafts manufactured strictly to engineered drawings and specifications. High-precision turning capabilities cover stainless steel, aluminum, carbon steel, copper alloys, and engineering plastics, supported by full secondary machining and surface finishing options.
-

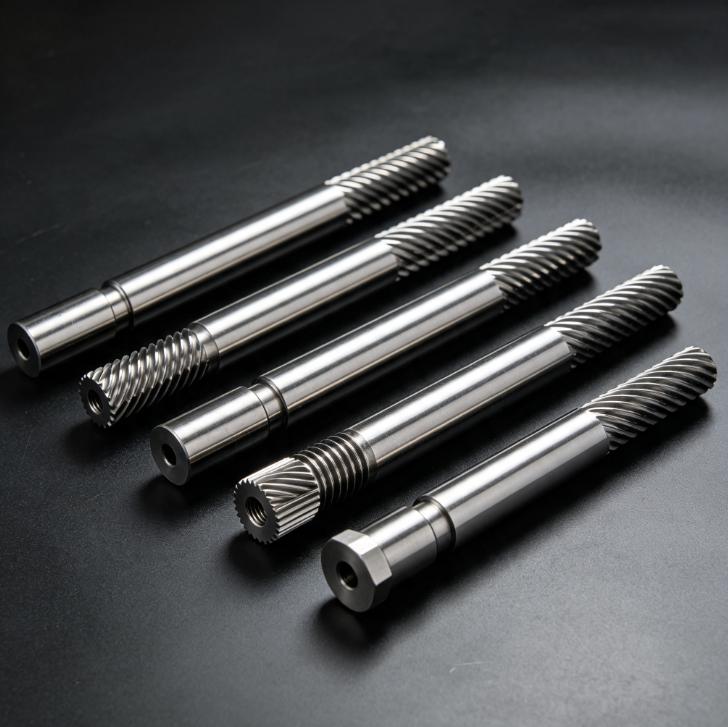

![CNC Splined Shafts]()
CNC Splined ShaftsCustom CNC Splined Shafts are high-torque mechanical components crafted to deliver smooth rotational transfer between mating shafts, gears, and hubs. Engineered through precise turning, gear hobbing, -

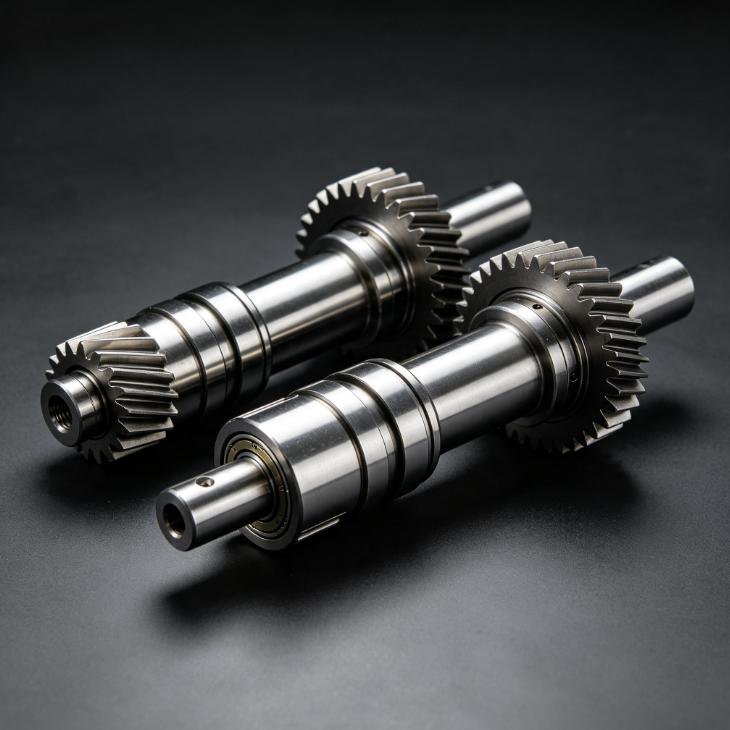

![CNC Gearbox Shafts]()
CNC Gearbox ShaftsPrecision CNC Gearbox Shafts are essential rotational components designed for high-torque transmission and precise axial positioning in mechanical drive systems. Machined directly from engineering -
![CNC Pump Shafts]()
CNC Pump ShaftsPrecision-machined custom CNC pump shafts engineered for demanding pump assemblies. Each shaft features tightly controlled stepped diameters, journals, keyways, external threads, and functional flats -
![CNC Motor Shafts]()
CNC Motor ShaftsCustom CNC Motor Shafts are precision-machined rotating components engineered to deliver reliable torque transfer, balanced high-speed stability, and tight dimensional alignment in demanding drive -
![CNC Drive Shafts]()
CNC Drive ShaftsCNC drive shafts are core mechanical components designed to transmit torque, rotational power, and motion between machine parts. Produced directly from custom technical drawings or physical samples, -
![CNC Stepped Shafts]()
CNC Stepped ShaftsPrecision CNC stepped shafts engineered with multiple turned diameters along a single axis to form functional shoulders, bearing seats, and component positioning surfaces. Manufactured directly to
Precision Shaft Components for Global Industrial Applications
Manufacturing custom CNC turned shafts requires precise dimensional accuracy, steady material control, and end-use assembly consistency. Shaft components are produced to exact engineering drawings, strict geometric tolerances, and defined surface requirements.
Material Versatility:
Dedicated machining strategies for aluminum, stainless steel, carbon steel, copper alloys, and technical polymers.
Flexible Volume:
Streamlined setup processes to handle quick-turn prototypes, low-volume validation batches, and high-volume production.
Integrated Secondary Operations:
Precision threading, cross-hole drilling, and flat milling reduce supply chain steps and overall lead time.
CNC turned shafts are cylindrical mechanical components produced by rotating raw material against stationary cutting tools. This subtractive process removes material to create precise outside diameters, functional shoulders, retaining grooves, chamfers, and threads.
Dimensional Precision: Tight outer diameter limits ensure proper seating for bearings, couplings, and power transmission elements.
Rotational Alignment: High concentricity between stepped sections prevents vibration and premature wear in dynamic assemblies.
Functional Integration: Multiple mechanical features are machined into a single shaft to simplify downstream component assembly.
Custom CNC Turned Shaft Configurations
Different mechanical platforms require distinct geometric features to handle rotational torque, axial loads, and mechanical alignment.
Straight & Stepped Shafts
Uniform or multi-diameter designs engineered to mount bearings, gears, pulleys, and retaining rings at designated axial positions.
Threaded & Shoulder Shafts
Integrated external or internal threads combined with precision-machined shoulders to provide positive axial positioning and structural fastening.
Grooved & Keyed Shafts
Circumferential grooves engineered for snap rings or seals, alongside milled flat sections or keyways for direct power transfer.
Drive Shafts & Precision Axles
Balanced rotational components tailored for power transmission, pivoting mechanisms, and high-load structural hinge joints.
Engineering Materials for Shaft Manufacturing
Aluminum Alloys: Lightweight choices such as 6061-T6 and 7075-T6 offer excellent strength-to-weight ratios, corrosion resistance, and high machinability for automation parts.
Stainless Steels: Grades including 303, 304, 316L, and 17-4 PH provide high tensile strength, extreme wear resistance, and long-term corrosion protection.
Carbon & Alloy Steels: Grades like 1045, 4140, and 12L14 deliver high mechanical strength, surface hardness after heat treatment, and structural durability.
Copper Alloys: Brass and bronze materials feature low friction coefficients, natural corrosion resistance, high electrical conductivity, and non-galling properties.
Engineering Plastics: Materials such as POM, PEEK, and Nylon offer electrical insulation, chemical resistance, self-lubricating characteristics, and low weight.
Complete manufacturing capability extends from initial turning to localized secondary machining and surface protection.
Secondary Operations
• Precision thread chasing and tapping
• Off-axis cross-hole drilling and reaming
• Flat milling, keyway cutting, and chamfering
• Mechanical deburring and edge rounding
Surface Treatment Capabilities
• Anodizing: Type II clear or color anodizing and Type III hardcoat for aluminum surface hardness.
• Plating Options: Electroless nickel, bright zinc, chrome, and passivation for enhanced corrosion protection.
• Oxidation & Nitriding: Black oxide and QPQ salt bath nitriding for improved surface lubricity and wear resistance.
Key Industries & Operational Applications
Custom shaft components serve critical motion control and structural roles across diverse sector platforms.
Industrial Automation: Linear motion drive shafts, pneumatic actuator rods, conveyor rollers, and robotic arm pivot pins.
Electronics & Electrical: Precision motor shafts, internal rotating shafts, brass contact pins, and connector hardware.
Automotive Systems: Sensor housings, small axle components, steering linkage shafts, and fluid valve components.
Medical Devices: Stainless steel actuator shafts, component guide pins, and internal pump drive shafts.
Why Choose Us
Modern Lathe Fleet:
Over 50 CNC lathes support continuous production runs with minimal downtime.
Tight Machining Tolerances:
Precision capabilities achieve dimensional accuracy within ±0.01 mm to ±0.02 mm.
Complete Manufacturing:
Single-source coordination covers raw stock procurement, primary turning, secondary milling, and plating.
Quality Verification:
Rigorous dimensional inspection protocols verify critical features before shipment.
Custom Manufacturing Process
Drawing Submission:
Provide 2D engineering drawings or 3D CAD models specifying key dimensions, materials, and finish callouts.
Engineering Review:
Technical assessment of geometries, tolerances, material machinability, and tool access pathing.
Formal Quotation:
Cost breakdown calculated on material volume, setup requirements, machining runtime, and finishing.
Sample Validation:
First-article prototypes produced for dimensional sign-off prior to full-scale production runs.
Precision Machining:
Automated CNC turning and secondary feature creation carried out under controlled shop parameters.
Quality Inspection:
Calibration checks using optical comparators, micrometers, CMMs, and surface roughness testers.
Surface Treatment:
Parts undergo passivation, anodizing, plating, or heat treatment as required.
Packaging & Delivery:
Secure protective packing prevents surface damage during transit to international destinations.
FAQ
Request a Quote for Custom CNC Turned Shafts
To expedite technical review and receive an accurate quotation, please include 2D or 3D engineering drawings, specified material grade, critical tolerances, surface treatment requirements, order quantities, and target shipping address.
