Designed for Heavy-Duty Louver Systems

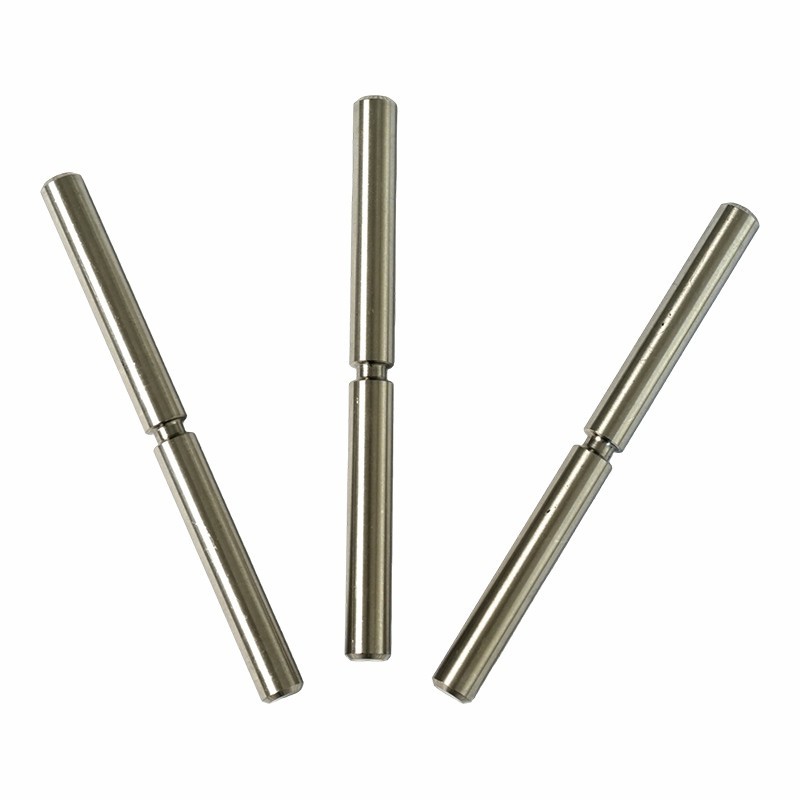

Louver shafts are critical transmission components in door, window, and shading systems. In high-rise applications, they bear the full weight of the louver structure, making strength and stability essential for safety and long-term performance.

Manufactured using advanced stainless steel cnc machining parts processes, our louver shafts are developed specifically with stainless steel materials to deliver high rigidity, strong load-bearing capacity, and smooth rotation. Each movement of the louvers remains precise, stable, and quiet - effectively eliminating the common issues of bending and breakage found in aluminum alternatives.

Flexible Customization

We offer full customization to support diverse global orders, especially for multi-variety, small-batch production.

Custom options include:

• Shaft diameter and length

• Thread specifications (imperial, unified, metric, trapezoidal, and custom threads)

• Structural features tailored to different louver systems

Simply provide drawings to receive a fast quotation. With factory-direct supply, we ensure competitive pricing and flexible lead times.

Material | Stainless Steel Only for Safety and Durability

Why Not Aluminum?

In high-rise louver systems, shafts are subjected to continuous load and frequent operation. Aluminum lacks sufficient strength and fatigue resistance, making it prone to bending or fracture over time. For this reason, we exclusively offer stainless steel solutions to ensure safety and long service life.

Available Stainless Steel Grades (303 / 304 / 316)

303 Stainless Steel

• Easy to machine, making it suitable for complex shaft designs and custom louver shafts in a wide range of specifications.

• High strength with excellent resistance to bending and fracture, meeting the load-bearing requirements of high-rise louver systems.

• Good resistance to atmospheric corrosion, suitable for both indoor and outdoor use, with low risk of rusting or deformation.

304 Stainless Steel

• Well-balanced overall performance, offering both corrosion resistance and load-bearing capability for most louver applications.

• Complies with food-grade safety standards, with no harmful substance release, making it suitable for residential and office environments.

• Strong fatigue resistance, allowing long-term high-frequency operation with reduced risk of damage and extended service life.

316 Stainless Steel

• Contains molybdenum for significantly better corrosion resistance than standard stainless steel, making it ideal for coastal, humid, and other harsh environments.

• High-strength load-bearing design, suitable for large louver systems and heavy-duty window applications.

• Performs reliably across a wide temperature range, maintaining stable operation from -270°C to 870°C.

Typical Chemical Composition

Material	Key Elements
303 Stainless Steel	Cr: 17.00–19.00% · Ni: 8.00–10.00% · Mn: ≤2.00%
304 Stainless Steel	Cr: 18.00–20.00% · Ni: 8.00–12.00% · C: ≤0.08%
316 Stainless Steel	Cr: 16.00–18.00% · Ni: 10.00–14.00% · Mo: 2.00–3.00%

Manufacturing Excellence

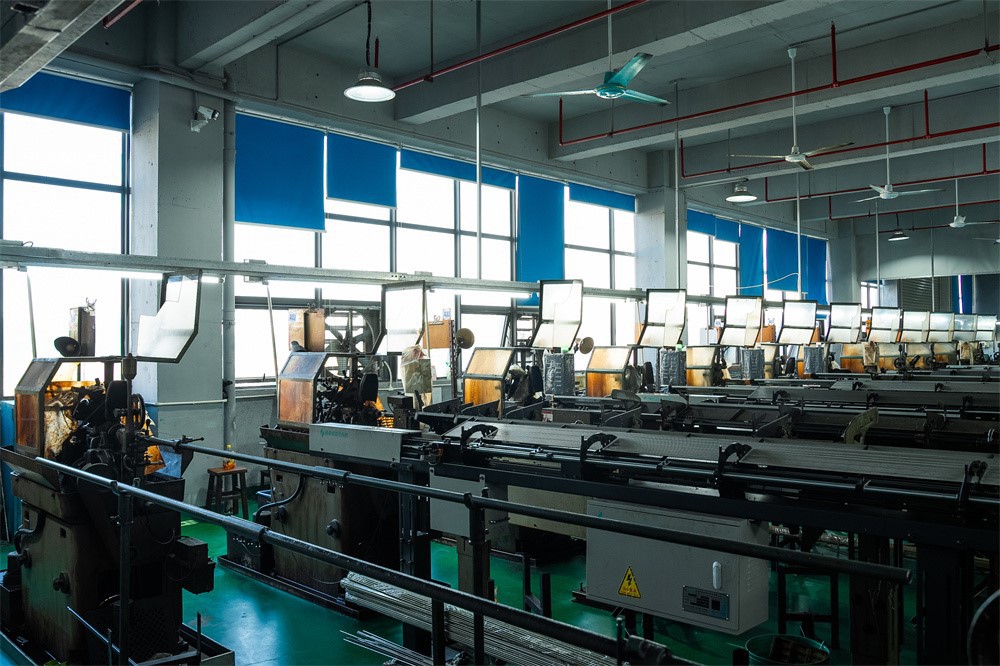

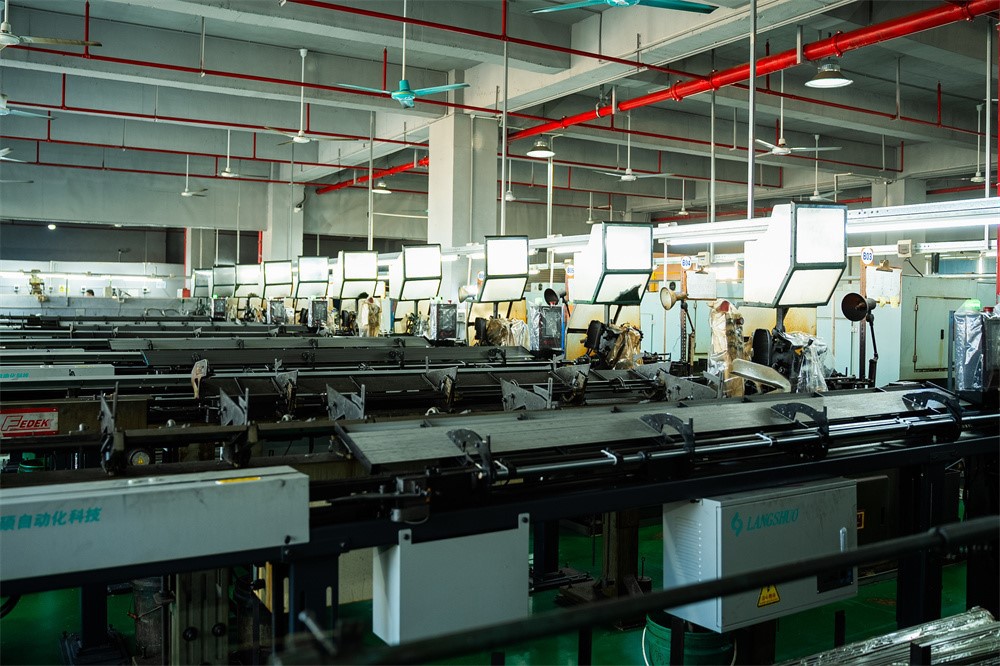

Our stainless steel cnc machining parts are produced through precision CNC machining with strict control at every stage:

• One-piece construction ensures uniform structure and balanced load distribution, eliminating risks of deformation.

• Precision tolerances: shaft diameter ±0.01 mm, length ±0.1 mm, straightness up to 0.005 mm, enabling smooth and quiet rotation.

• Load-optimized design: reinforced shaft diameter (minimum ≥3 mm) and strengthened shaft ends to improve structural stability.

• Surface finishing options: passivation and polishing to enhance corrosion resistance and reduce wear.

• Full inspection process: material verification → CMM dimensional inspection → load testing (up to 50 kg) → rotation testing → salt spray testing.

All products are delivered with 100% quality assurance.

Key Advantages

High Load-bearing Safety

Stainless steel offers strong resistance to bending and fracture, making it suitable for the weight requirements of high-rise louver systems with no safety concerns.

Precise Transmission

Coaxiality ≤0.02 mm ensures stable rotation without deviation, allowing accurate and controlled louver movement.

Flexible Customization

Available in a wide range of shaft diameters (3–50 mm) and lengths (100–3000 mm), suitable for both small and large louver systems.

Easy Installation

Customizable keyways, steps, and threaded ends for compatibility with various mounting methods, improving assembly efficiency.

Export-ready Solutions

Supports neutral packaging and custom branded packaging, compliant with international shipping standards, with flexible lead times (7–15 days for small batches, 15–30 days for mass production).

Core Specifications

Category	Specification
Machining Accuracy	Shaft diameter ±0.01 mm, Length ±0.1 mm
Geometric Tolerance	Coaxiality ≤0.02 mm, Runout ≤0.03 mm
Surface Treatment	Passivation / Polishing (various finishes available)
Salt Spray Test	303/304 ≥48h, 316 ≥100h
Maximum Machining Size	Shaft diameter ≤50 mm, length ≤1000 mm (longer lengths customizable)
Load Capacity	Up to 50 kg per shaft (can be reinforced based on requirements)
Lead Time	7–15 days (small batch), 15–30 days (mass production)

Applications

Suitable for a wide range of louver systems:

High-rise exterior shading systems

Interior window and door louvers

Office partition systems

Curtain wall louvers

Smart home shading systems

Sunroom shading solutions

Industrial ventilation louvers

Medical cleanroom systems

Marine and vehicle applications

Custom special-purpose louvers

Surface Treatment Options

Available processes include:

Heat treatment
Carbonitriding
Oxidation
Zinc plating
Nickel plating
Zinc-nickel alloy plating
QPQ treatment
Passivation
Electrolytic finishing
PVD coating

Our Commitment

We specialize in precision CNC turning and stainless steel louver shaft development. Our designs are optimized for high-load applications in high-rise environments, supported by a mature global service system.

From drawing evaluation and process optimization to production, delivery, and after-sales support, we provide full-cycle professional service. Every shaft we produce is built for reliability, precision, and long-term performance - making it a trusted choice among stainless steel cnc machining parts for global customers.

Customization & Support

Custom designs, sample requests, and bulk quotations are all supported.
We look forward to working with you.
