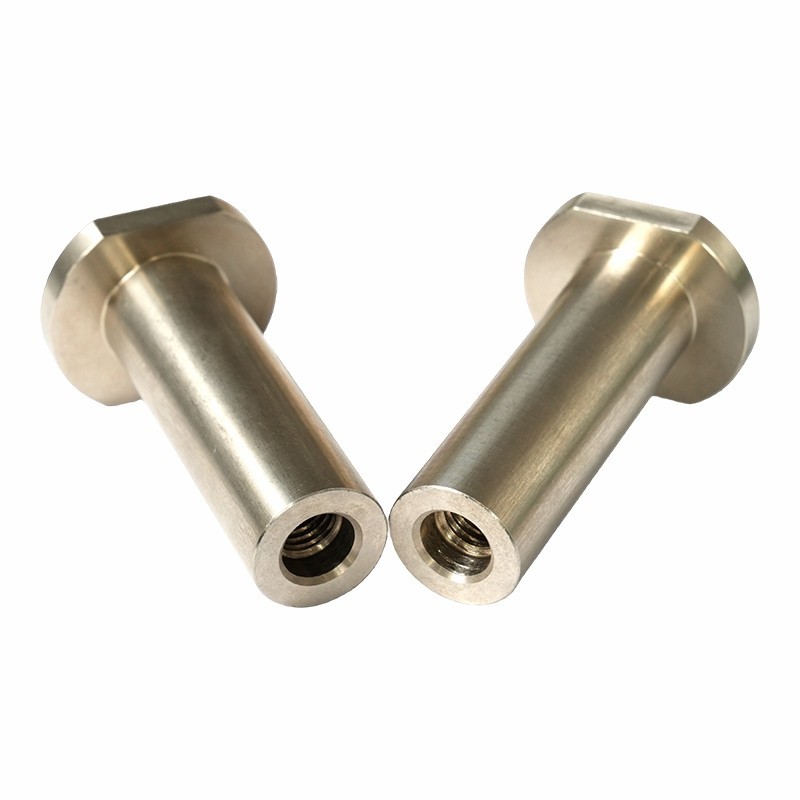

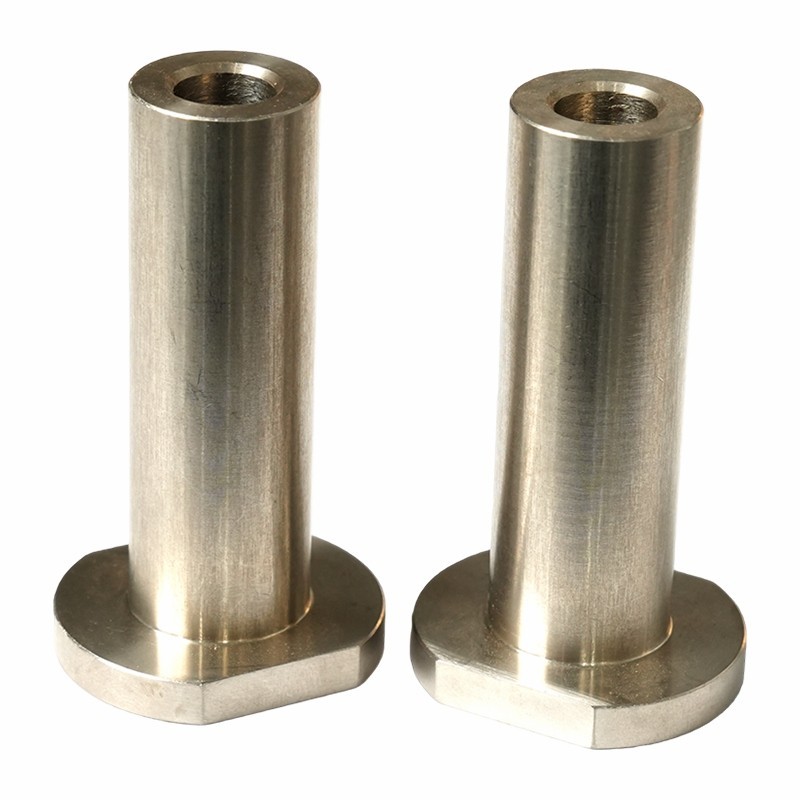

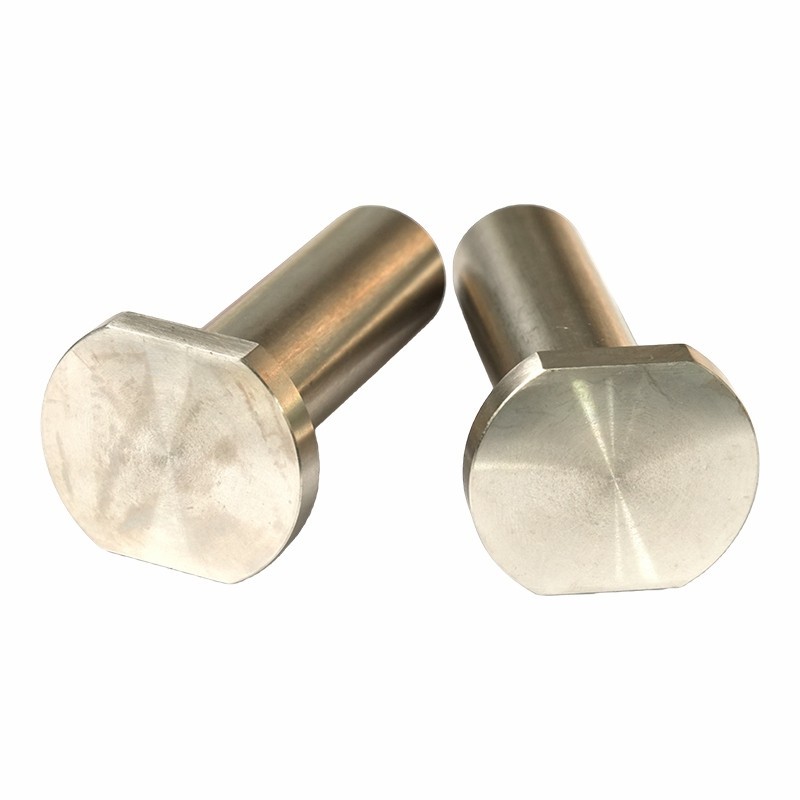

304 Stainless Steel Shaft

Built for reliability in demanding applications, the 304 stainless steel shaft plays a critical role in power transmission systems for automated equipment. With excellent corrosion resistance and precision machining, it provides a stable and durable foundation for smooth operation.

Manufactured using advanced CNC turning, each shaft is produced to micron-level precision. Every detail is carefully controlled to ensure consistent performance, making it a dependable choice among high-quality stainless steel CNC parts.

We offer flexible customization for stainless steel CNC parts, including imperial, unified (UNC/UNF), metric, trapezoidal, and non-standard threads. Whether for small-batch production or complex assemblies, we can adapt to your requirements. Send us your drawings for a fast and accurate quotation.

Material

304 stainless steel offers an excellent balance of strength, corrosion resistance, and durability.

• Chromium (Cr): 18.00–20.00%

• Nickel (Ni): 8.00–12.00%

• Carbon (C): ≤ 0.08%

• Manganese (Mn): ≤ 2.00%

• Silicon (Si): ≤ 1.00%

• Phosphorus (P): ≤ 0.045%

• Sulfur (S): ≤ 0.030%

• Nitrogen (N): ≤ 0.10%

Key advantages:

• Excellent corrosion resistance for humid, acidic, and alkaline environments

• High strength with minimal deformation, even under high-speed rotation

• Suitable for hygienic applications, including food and medical equipment

• Strong fatigue resistance for extended service life

Manufacturing Process

Each shaft is machined from a single piece, ensuring structural integrity with no joints or weak points.

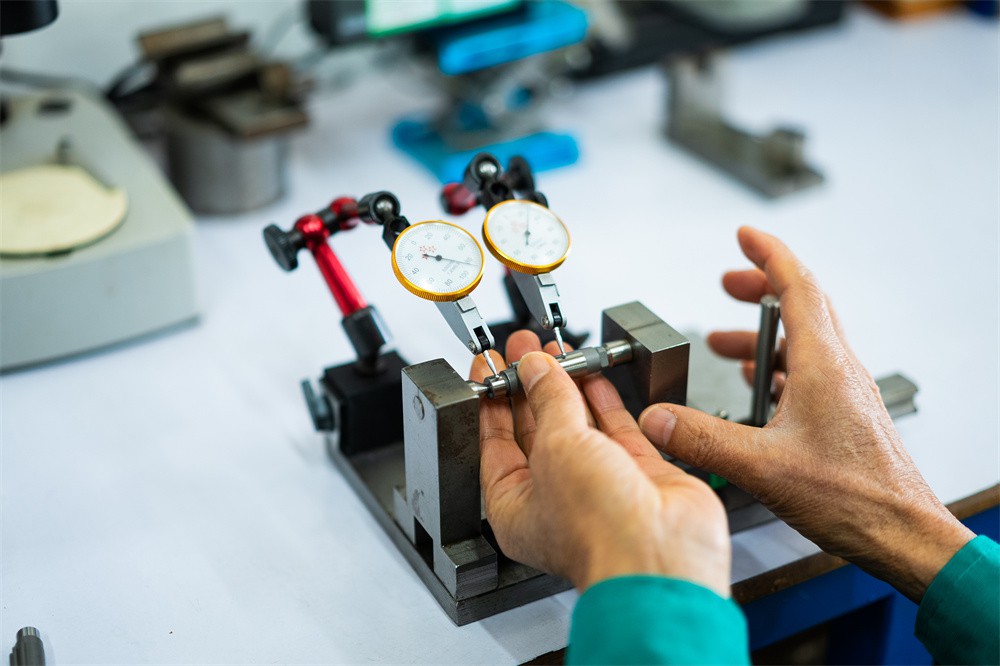

• Multi-stage inspection, including runout, dimensional tolerance, and surface finish checks

• Strict quality control to ensure consistent results across batches

Factory-direct supply:

• Competitive pricing without intermediaries

• Flexible production for both small and large volumes

• Optimized machining parameters for smoother rotation and improved wear resistance

Precision Performance

Shaft diameter tolerance controlled within ±0.01 mm
Coaxiality and runout ≤ 0.02 mm for excellent alignment
Surface roughness Ra ≤ 0.8 μm, smooth and burr-free
Consistent batch production for reliable assembly
Key features such as keyways and steps controlled within ≤ 0.03 mm

Core Specifications

Item	Specification
Shaft Diameter Tolerance	±0.01 mm
Length Tolerance	±0.1 mm
Surface Treatment	Natural / Passivation / Polishing
Salt Spray Resistance	≥48 hours (up to 100 hours after passivation)
Maximum Length	3–1500 mm (custom lengths available)
Coaxiality / Runout	≤0.02 mm
Surface Roughness	Ra ≤ 0.8 μm

Material Options

We also provide a range of corrosion-resistant materials for different applications, including:

• 304 Stainless Steel

• 316 Stainless Steel

• 303 Stainless Steel

These materials allow us to meet diverse requirements across various stainless steel CNC parts applications.

Applications

Suitable for a wide range of industries and equipment, including:

Automation systems and robotic joints

Medical and food processing equipment

Precision instruments and electronic devices

Marine and outdoor machinery

Custom tooling and automotive components

Our Commitment

Quality starts with attention to detail. From material selection to CNC machining, from customization to mass production, every step is carefully controlled.

Each shaft we produce reflects our commitment to delivering reliable, high-performance components for global customers.
