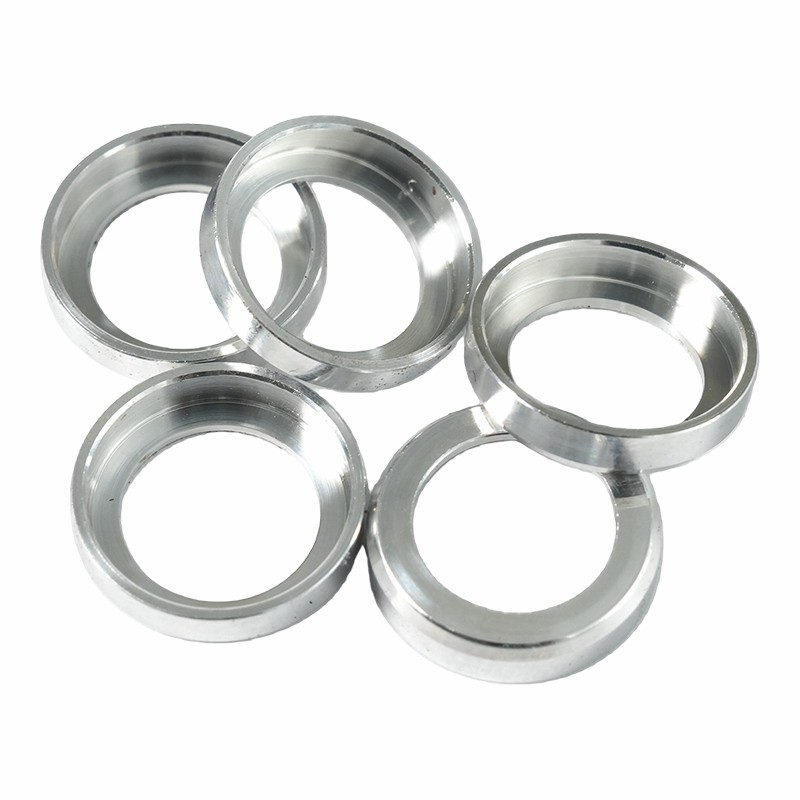

Aluminum 6063 Turned Parts
Precision starts with every component. By combining aluminum 6063 turned parts with high-density anodizing, we achieve an optimal balance of strength and corrosion resistance. Manufactured with precision CNC turning, each part is engineered for consistent performance and long-term reliability.
Thread Customization
We support customized threaded parts, including:
- Imperial threads
- Unified (UNC/UNF) threads
- Metric threads
- Trapezoidal threads
- Custom non-standard threads
Material | 6063 Aluminum Alloy | Lightweight and Durable
|
Element |
Range (%) |
Typical (%) |
|
Silicon (Si) |
0.20 – 0.60 |
0.40 |
|
Iron (Fe) |
≤ 0.35 |
0.20 |
|
Copper (Cu) |
≤ 0.10 |
0.05 |
|
Manganese (Mn) |
≤ 0.10 |
0.05 |
|
Magnesium (Mg) |
0.45 – 0.90 |
0.70 |
|
Chromium (Cr) |
≤ 0.10 |
- |
|
Zinc (Zn) |
≤ 0.10 |
0.05 |
|
Titanium (Ti) |
≤ 0.10 |
0.02 |
|
Other impurities |
≤ 0.15 |
- |
Process | Deep Anodizing
Deep anodizing enhances the performance of aluminum 6063 turned parts, enabling them to withstand harsh environments such as high temperatures, acidic and alkaline conditions, sunlight, and rain.
• Dense anodized layer with excellent corrosion and wear resistance
• Uniform surface color and improved appearance
• Extends service life by approximately 30% under demanding conditions
• Can improve durability by up to 200% in high humidity and corrosive environments
Precision | Machined Aluminum Parts
CNC precision machining with strict tolerance control; threads comply with 6H standards.
Complex profiles formed in a single operation; positional accuracy and concentricity within 0.02mm.
Strong batch consistency with smooth and reliable assembly performance.
Product Parameters
|
Item |
Specification |
|
Outer Diameter Tolerance |
±0.01 mm |
|
Length Tolerance |
±0.1 mm |
|
Anodized Layer Thickness |
≥200 μin |
|
Salt Spray Test |
200 hours |
Materials Available for Aluminum Turned Parts
6063 Aluminum Alloy
6061 Aluminum Alloy
7075 Aluminum Alloy
2021 Aluminum Alloy
5052 Aluminum Alloy
Applications
Our Commitment
We believe true reliability comes from dedication to every process.
From material selection to anodizing, from programming to CNC turning - every aluminum 6063 turned parts component reflects our commitment to precision and quality.
FAQ
