7075 Aluminum CNC Turning Parts

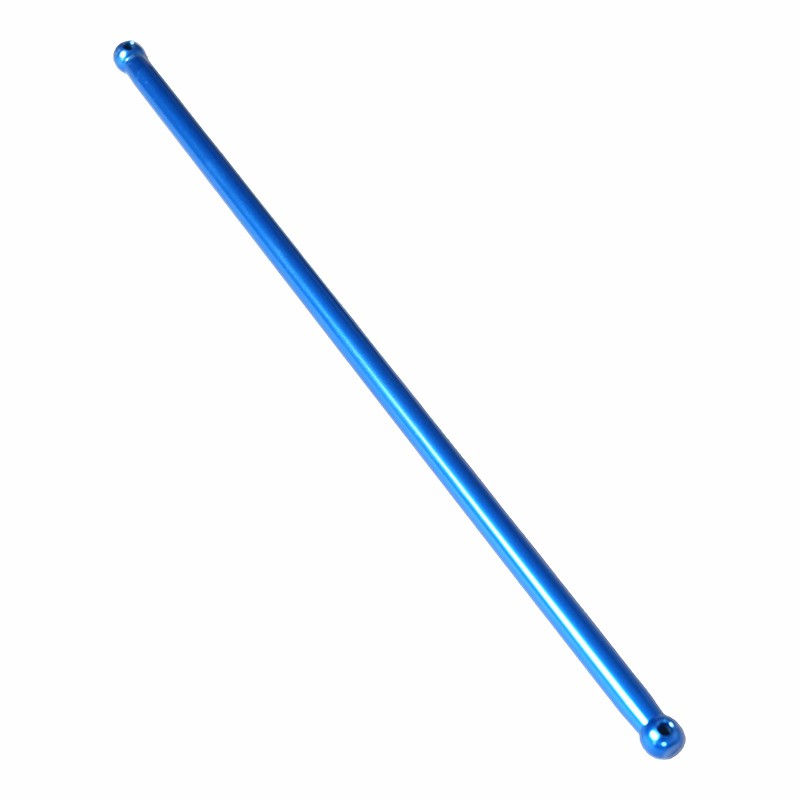

Lightweight Precision Drive Shaft for RC Cars and Camera Drones
Product Overview
This main drive shaft is manufactured from aerospace-grade 7075 aluminum alloy through precision CNC turning processes. The surface is treated with blue anodizing to improve corrosion resistance and wear resistance. The anodized color can also be customized according to customer requirements.
These CNC turning aluminum parts are mainly used in RC cars and camera drones. By using high-strength 7075 aluminum alloy, the component significantly reduces the overall weight of the model while improving structural rigidity by approximately 25%, which can improve endurance by about 15%.
After anodizing treatment, the component offers excellent dimensional stability with low internal stress, reducing the risk of deformation during long-term use.
Material Specification
The part is made from 7075 aluminum alloy, which is widely used in aerospace and other high-performance mechanical applications.
Main alloy elements include:
• Aluminum (Al)
• Zinc (Zn)
• Magnesium (Mg)
• Copper (Cu)
These elements form the core strengthening structure of the alloy, while Chromium (Cr) acts as a key stabilizing element.

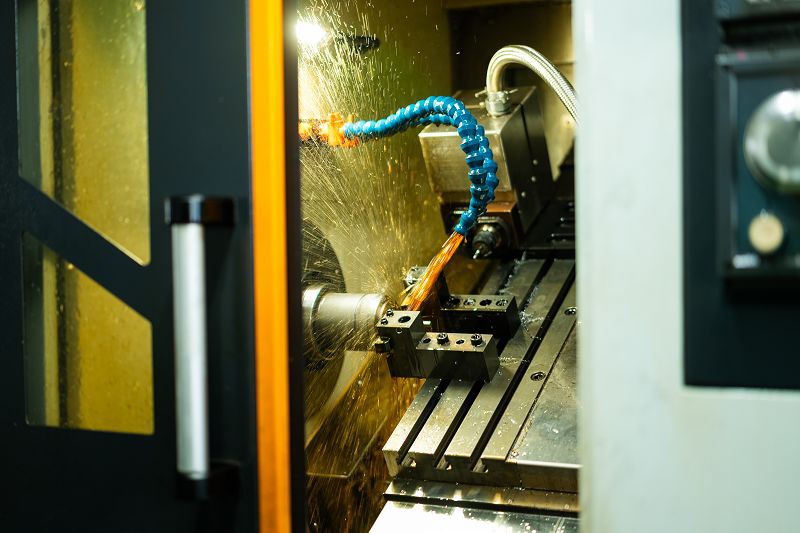

CNC Turning Capability
The product is manufactured using high-precision CNC turning, allowing the part to be completed in a single machining process.
Production capacity
Approximately 200–300 pieces within 8 hours
Machining tolerance
Outer diameter tolerance: ±0.01 mm
Length tolerance: ±0.1 mm
Maximum machining capacity
Bar material maximum diameter: Φ46 mm
Maximum machining length: 1000 mm
Single part maximum diameter: Φ300 mm
Surface Treatment
The part undergoes anodizing treatment to enhance durability and corrosion resistance.
Surface specifications:
- Anodized layer thickness: ≥200 μin
- Salt spray test resistance: up to 200 hours
Available anodizing colors include:
- Black, Matte black
- Sandblasted anodized finish, Gold
- Natural aluminum color, Yellow
Custom colors can also be produced according to customer requirements.

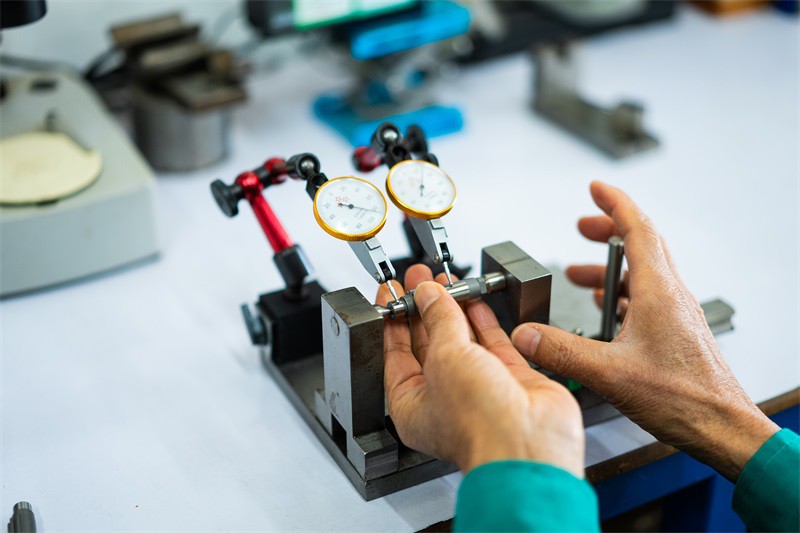

Quality Inspection
To ensure each component meets drawing specifications, the production process includes multiple inspection stages:
- Material verification
- First article inspection
- In-process inspection
- Post-anodizing inspection
- Pre-shipment testing
- 100% visual inspection
Inspection equipment includes:
- Metal analyzer
- Micrometer
- Vernier caliper
- Coating thickness gauge
- Profile projector
This inspection process ensures stable quality for every batch of CNC turning aluminum parts.
Applications
7075 aluminum turning parts are widely used in industries that require high-strength and lightweight structural components, including:
- High-performance bicycle components
- Racing vehicle parts
- Mountaineering equipment
- Precision instrument brackets
- Sports equipment
- High-end industrial equipment

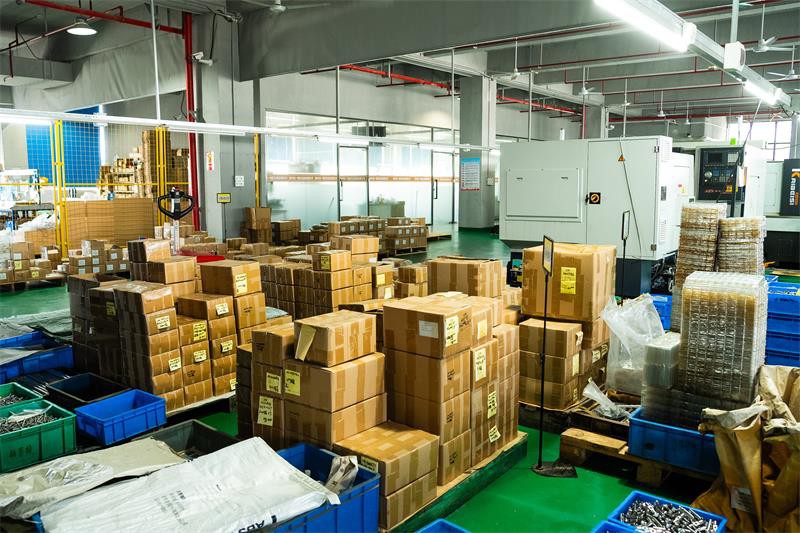

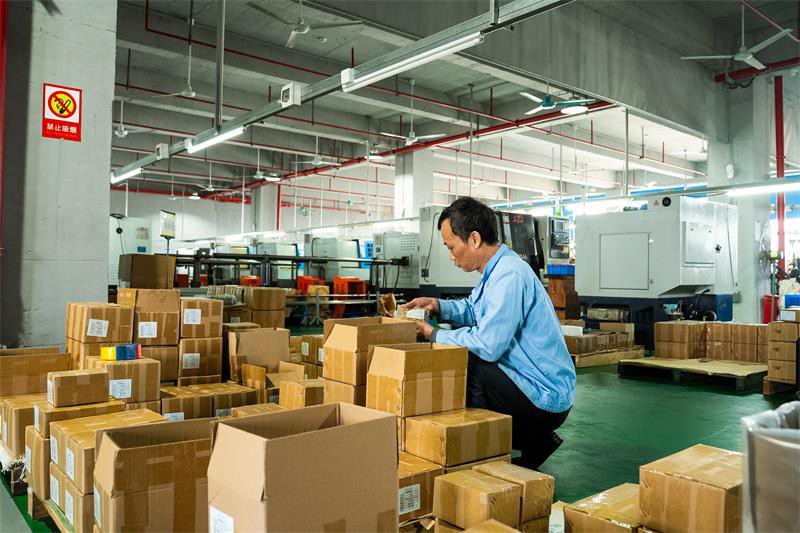

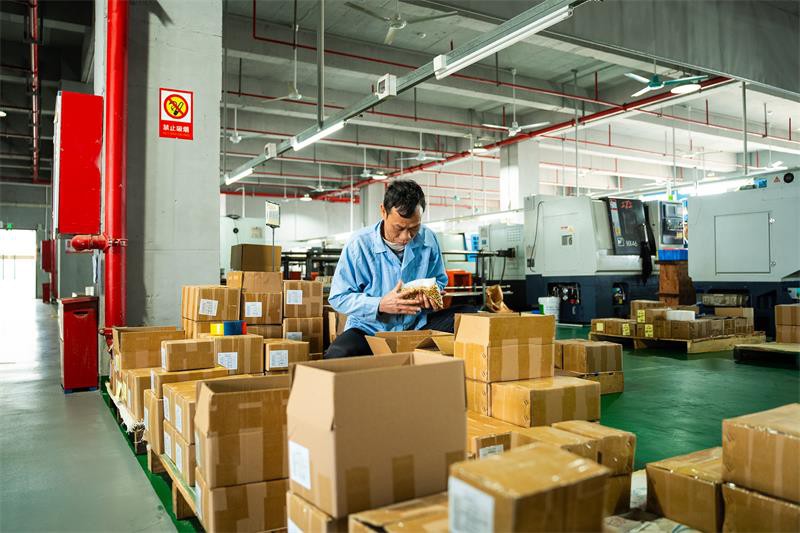

Packaging
Packaging can be customized according to customer requirements.
Standard packaging: PE bag + carton
